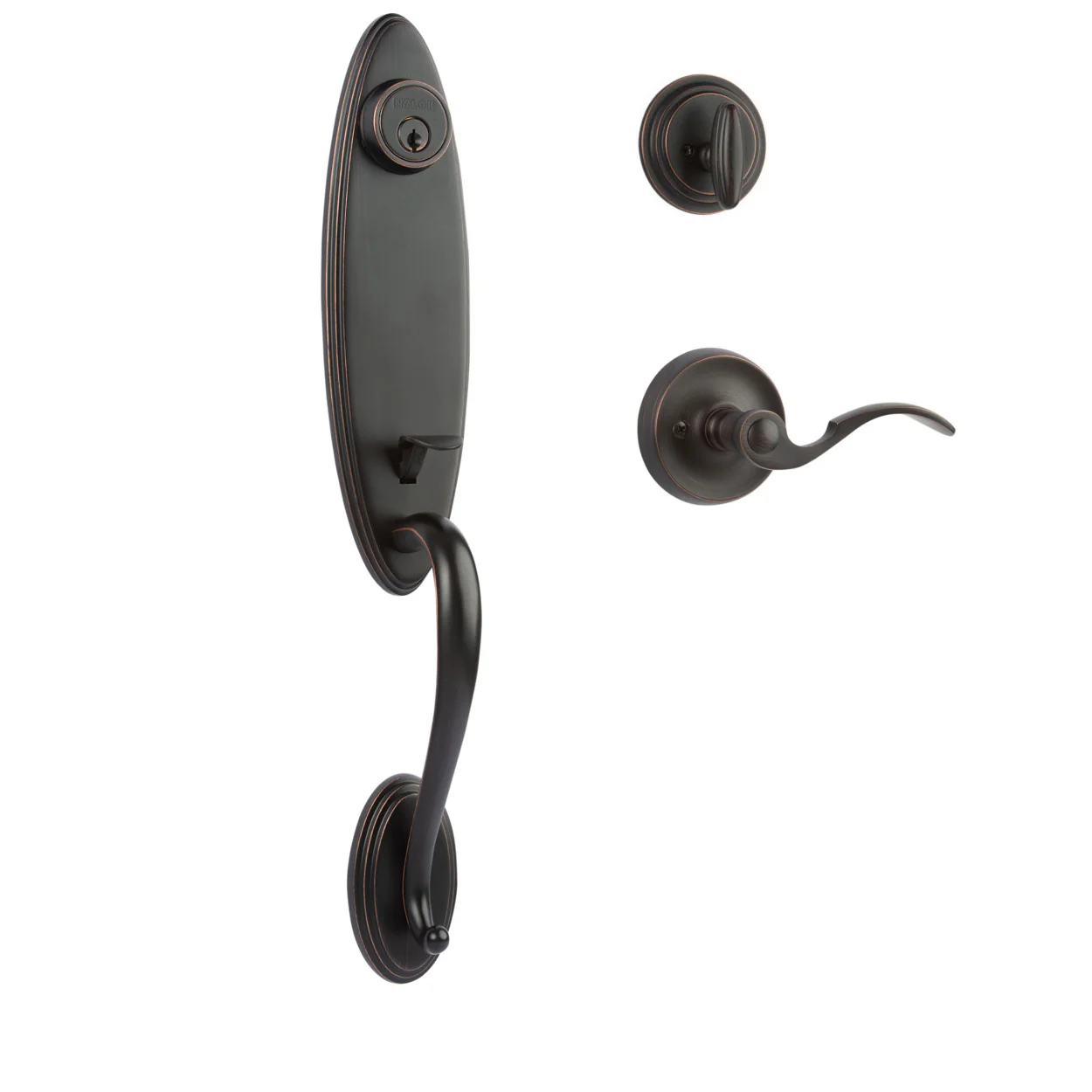

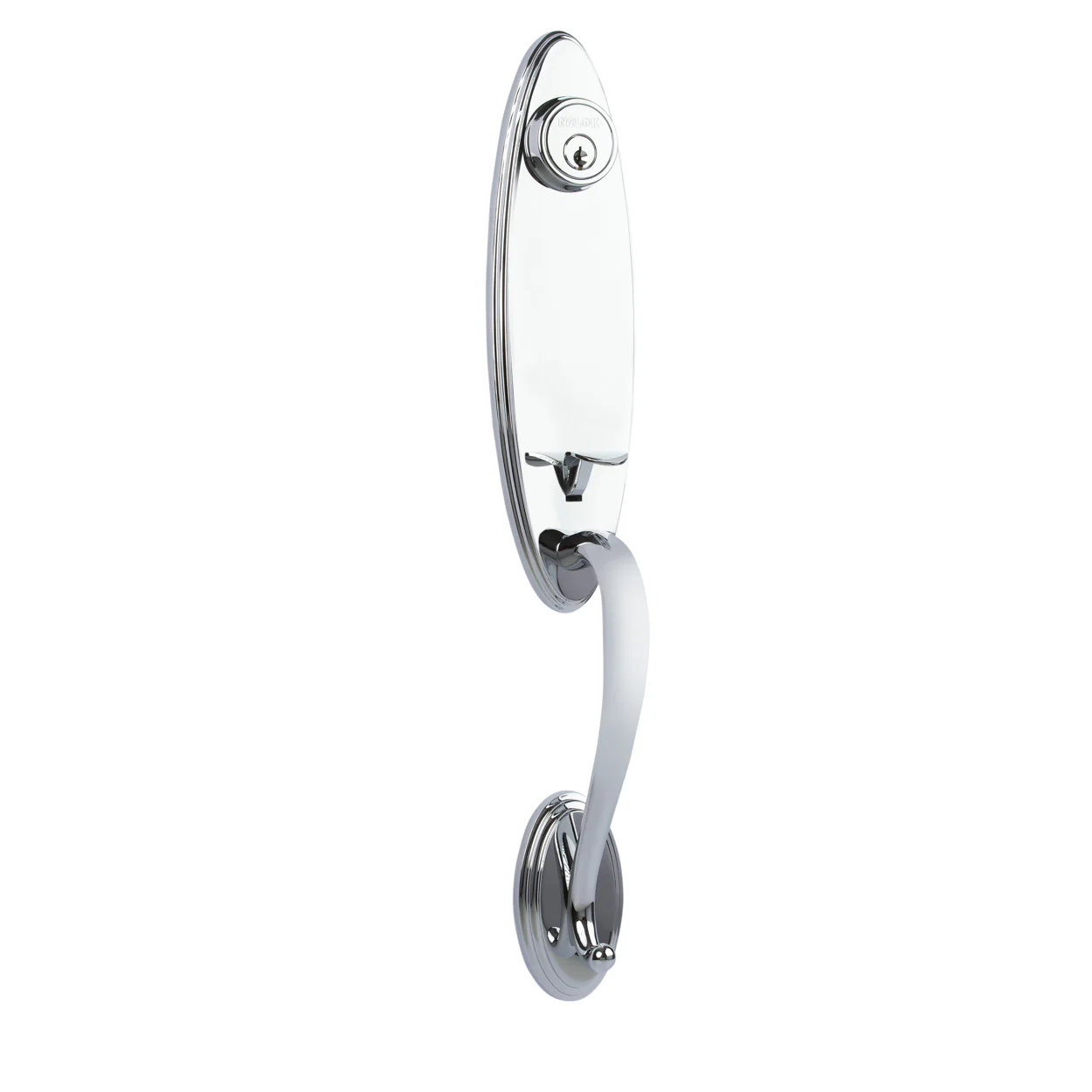

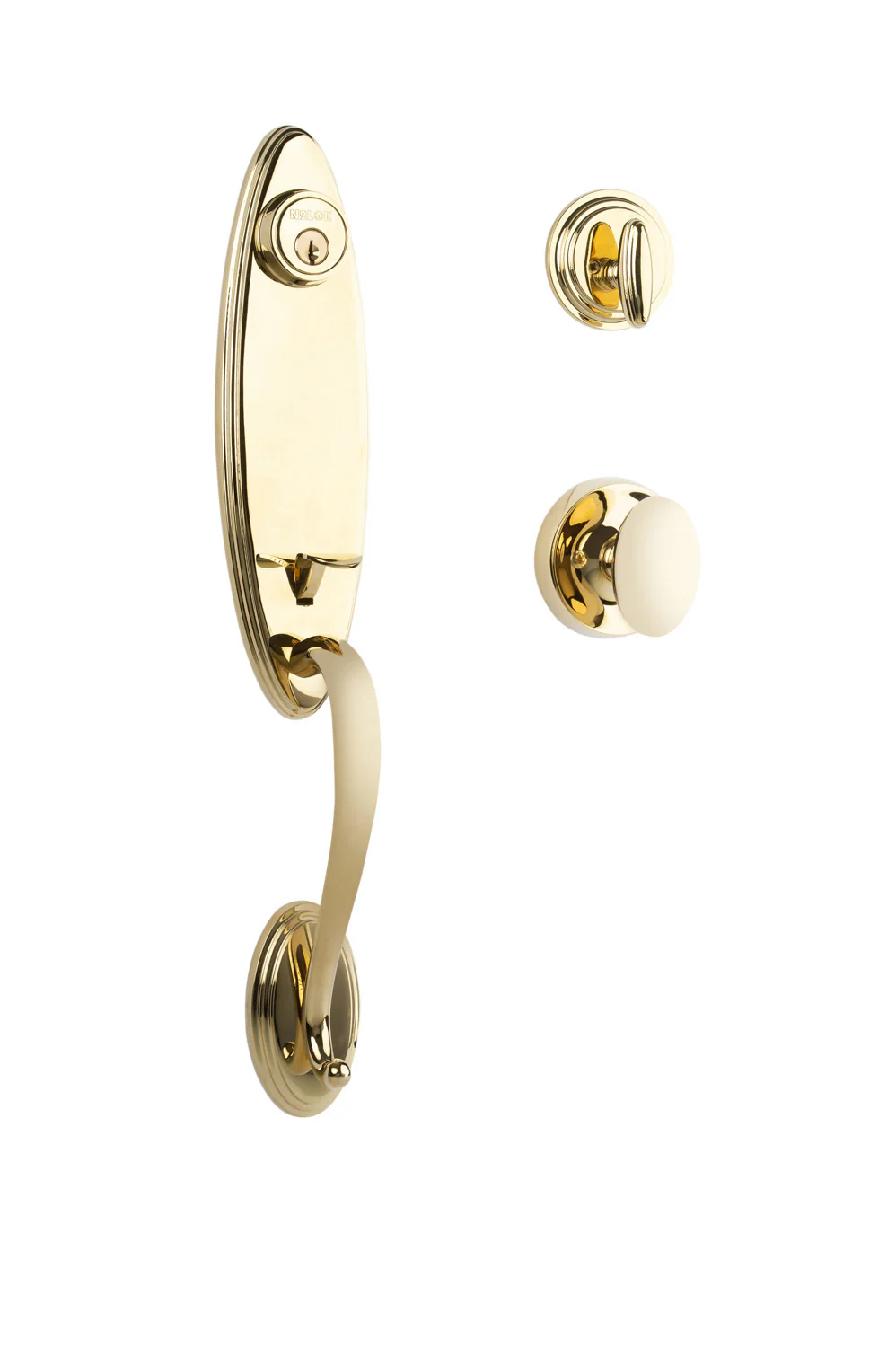

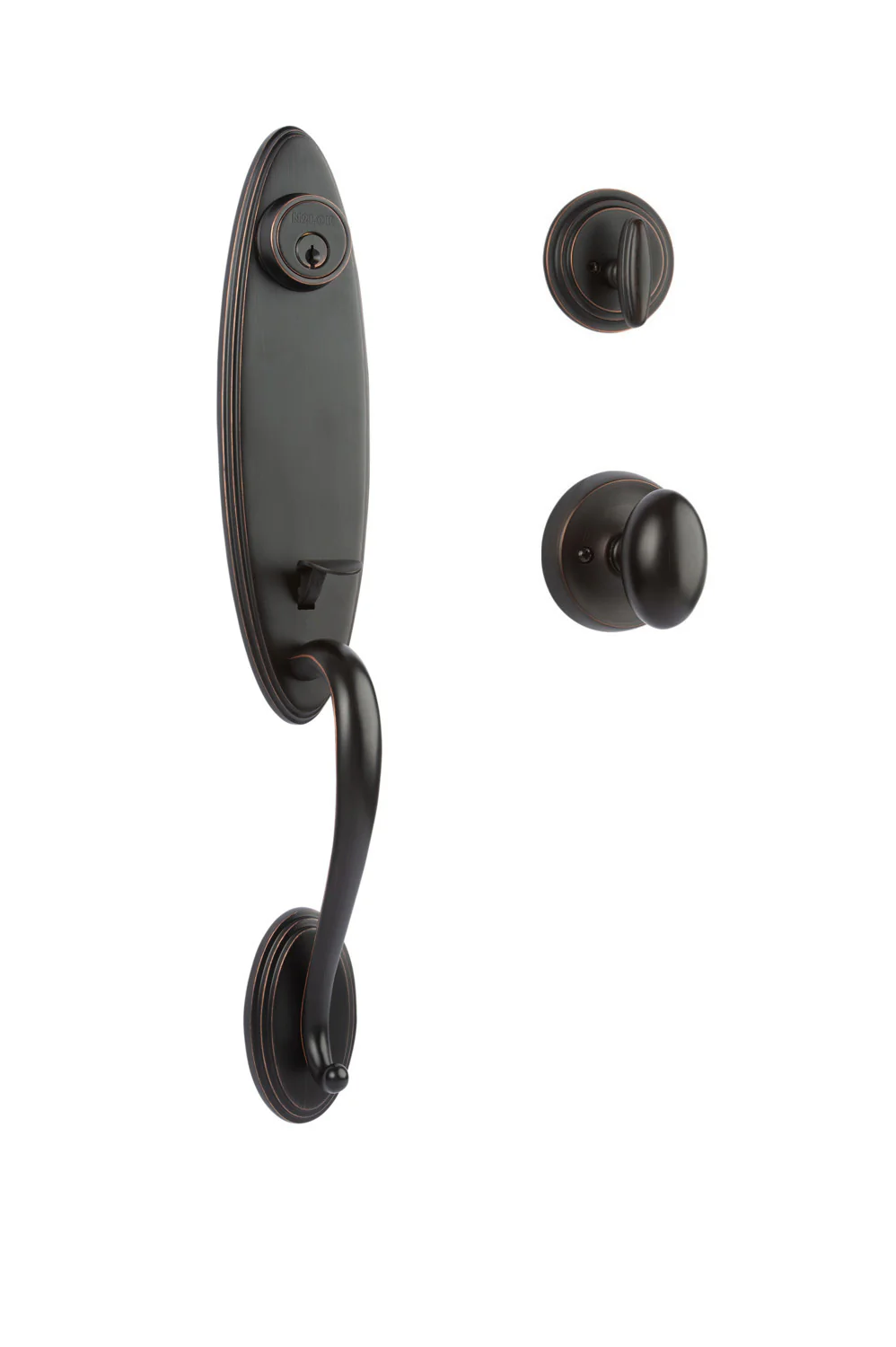

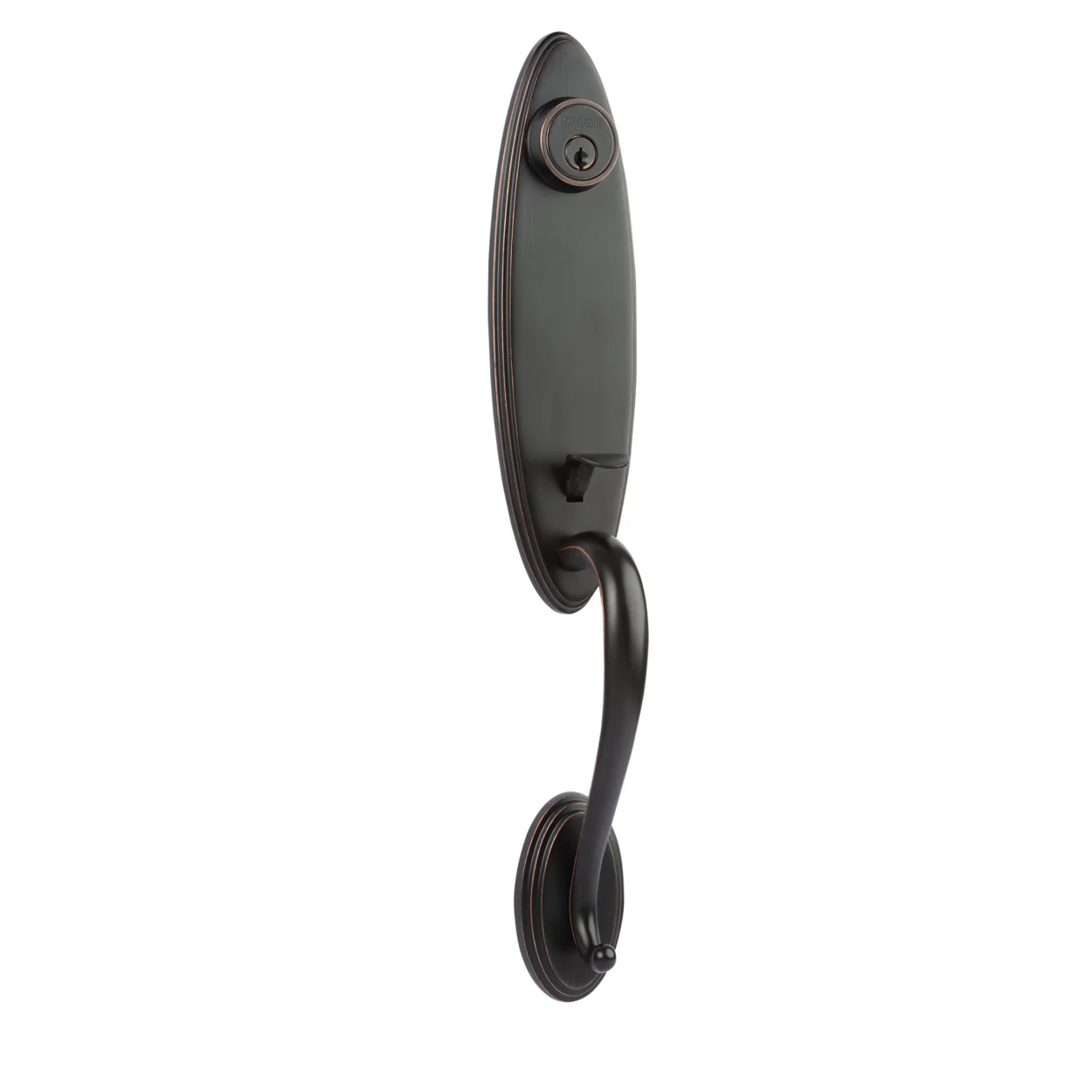

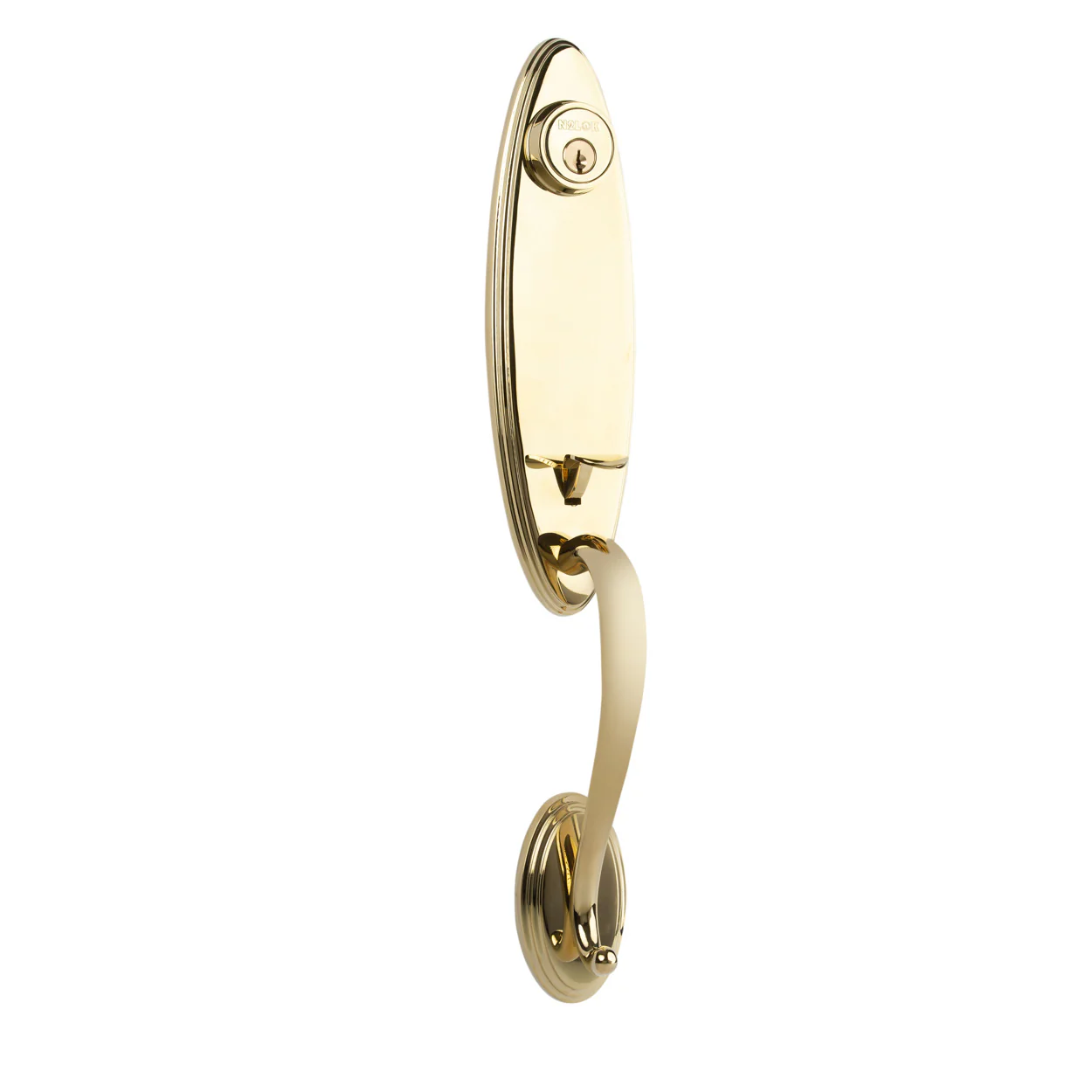

N2LOK MAISON ENTRANCE SET - LOIRE

N2LOK LOIRE Forged Brass Entry Set

Available finishes:

• Polished Brass
• Polished Chrome
• Satin Nickel
• Venetian Bronze

Key Features:

• The Loire entry set is made of solid forged brass substrate for enduring style & strength
• Supplied with the "wave" internal lever as standard. Also available with a egg knob in place of the lever. (Egg knob not available on Interconnecting Set)
• Forged brass is 250% stronger than cast brass
• 6 pin solid brass cylinder with the popular C4 keyway for more security
• 3 identically cut keys supplied with each entry handle suite
• Adjustable 60mm to 70mm backset on the spring latch & dead-bolt latch
• Smart non-handed lever design means 1 set suits both left & right hand door installations
• Easy to install with clear instructions & template
• Suitable for door thickness 35-45mm (Extension kit available upon request)
• Warranty 5 years on finish & 7 years on mechanical (will not include Matt Black, Venetian Bronze and Satin Brass, which have no warranty on the finish )

Functions:

Single Cylinder - Deadbolt is operated by key on external side and by thumb turn on internal side.
Double Cylinder - Deadbolt is operated by key on both external and internal side.
Dummy - Non locking set to be installed to the non-locking leaf of a set of double doors.
Interconnecting Set - Similar to single cylinder function ie. Deadbolt operated by key outside and thumb turn inside. However, interconnect has an added function that makes it different to a standard single cylinder deadbolt. It's added function is a deadbolt and spring latch that retracts simultaneously when the internal lever/knob is turned to open your door. Also features matching long internal plate to match external plate.

• Projection of pull handle is 74mm from face of door.

Installation instructions for Loire/Seine/Montpellier Handleset
